Special Trailers Sale - Special Trailers
- Reference

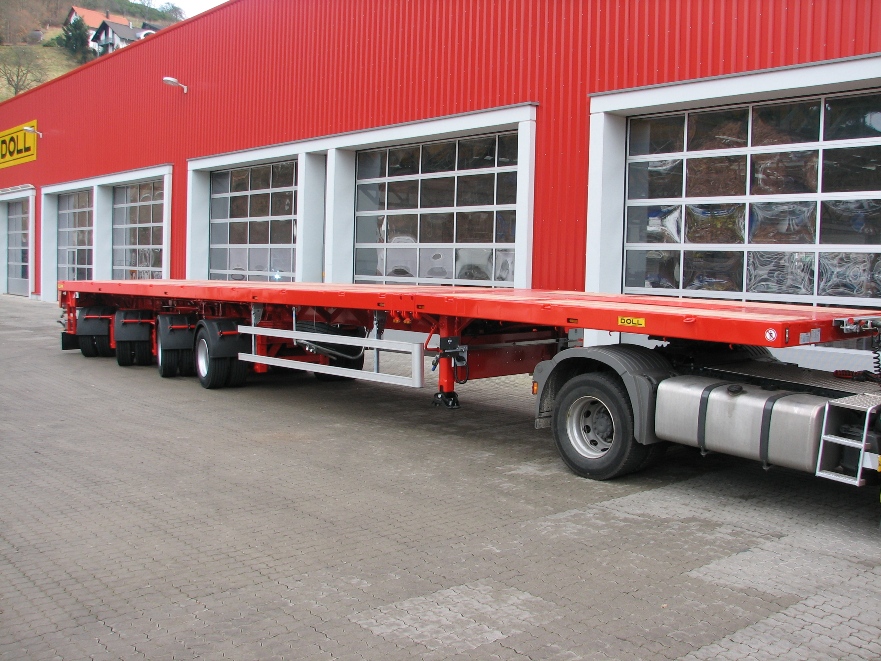

- DOLL VARIO P4H-D (D352)
- Brand
- DOLL
- Type of Vehicle
- PLATAFORMA 4 EJES, TRIPLE EXTENSIÓN, DIRECCIÓN HIDRÁULICA.
- Utility
- TRANSPORTE MATERIALES LARGOS, ESTRUCTURAS, PALAS EOLICOS, VIGAS, PREFABRICADOS,ETC...
- Price
- 128.000.-Euros + IVA
- Long
- 16.060 mm

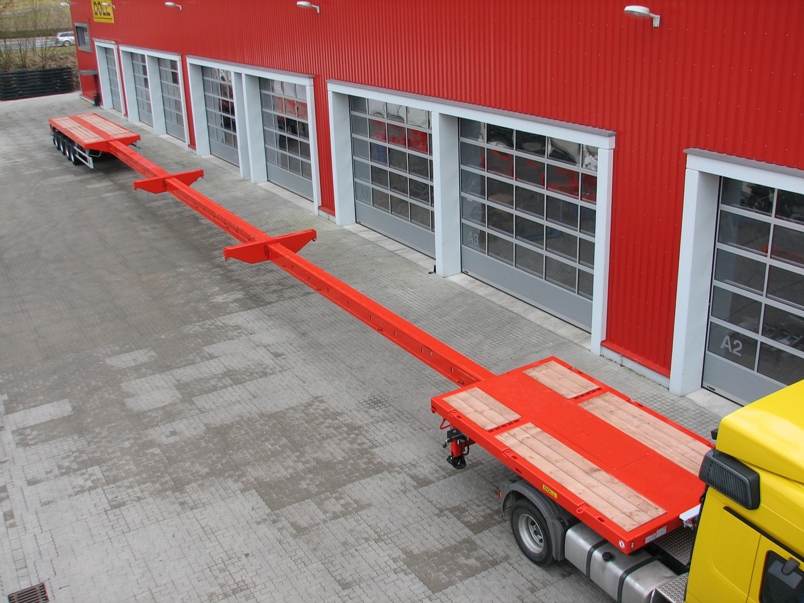

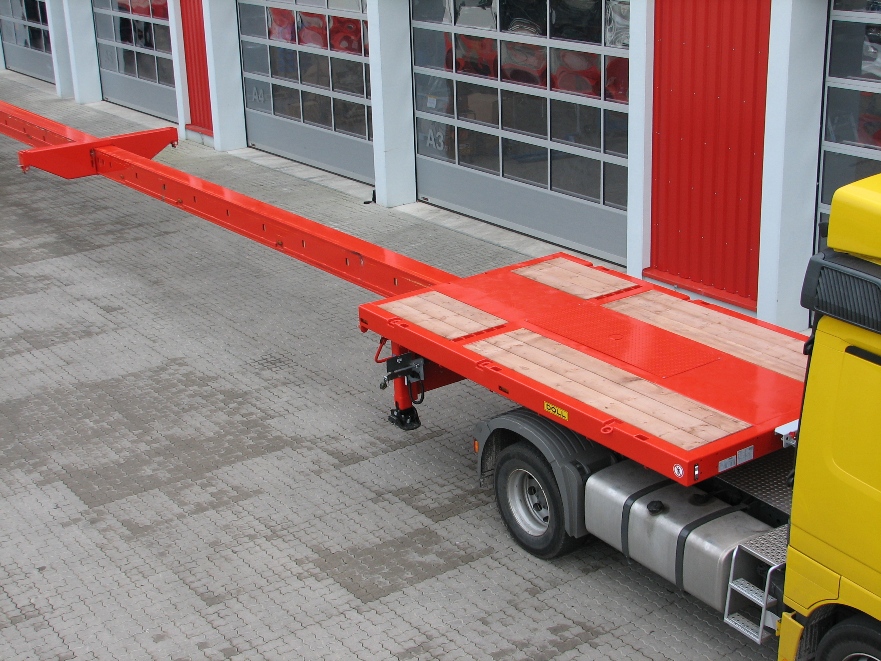

- Extended Length
- 44.860 mm
- Long shelf front
- 4.460 mm
- Front overhang
- 1.560 mm
- Rear overhang
- 1.590 mm
- Wide platform
- 2.530 mm
- Extensions
- 1er T. 9700 mm, 2º T. 9600 mm, 3er. T. 9500 mm
- Wheelbase
- 1º /2º 1.500 mm - 2º/3º 1.810 mm - 3º/4º 1.810 mm

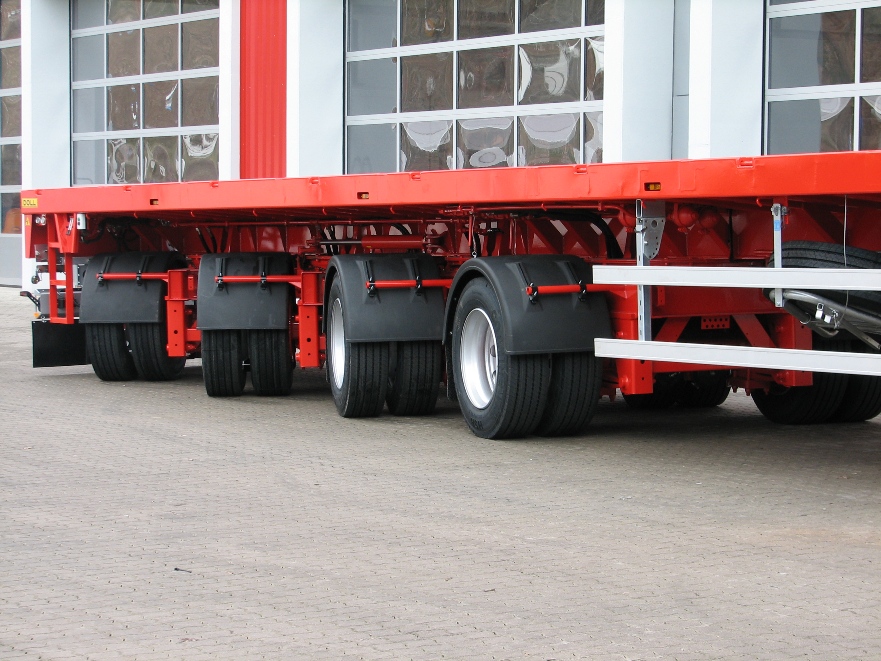

- Number of axles and mark
- 4 ejes marca BPW, suspensión hidráulica. Frenos Tambor. ABS. AGS y sistema ECO-hub.
- Empty Weight
- 18.700 kg. aproximado
- Total loaded weight
- 81.550 Kgs. a 40 km/hora
- Weight 5th Wheel
- 28.750 Kgs. a 40 km/hora
- Axle weight
- 4x13.200 kgs. a 40 km/hora
- Cargo Capacity
- 62.850 kgs. a 40 km/hora
- King pin
- 3,5
- Support legs
- 2 patas mecanicas de 24 Tn.
- Type of suspension
- Hidráulica con sisteta de elevación (-70 + 160 mm)
- Tires
- 17 neumáticos 275/70 R 22,5, con llantas de acero.
- Operation
- Hidráulica, forzada desde 5ª rueda
- Additional operation
- Con radio control.
- Braking system
- Frenos Tambor. ABS. AGS y sistema ECO-hub.
- Lights
- Instalación 24 voltios de acuerdo con la normativa vigente de trafico 76/756/EWG
- Connections with the tractor
- No se incluyen los cables espeirales de ABS y alumbrado ni los tubos de aire
- Spare tire bracket
- 1 soporte en el lado derecho del trailer.
- Paint
- Llantas plateadas, chasis y plataforma en 1 color RAL escogido por el cliente
- Wheels
- Acero
- Centralized lubrication
- Dos bombas BEKA-MAX
- Comments
- Construcción de acero reforzado de alta elasticidad con mandos del sistema de dirección integrados en el frontal. Kinping 3,5
